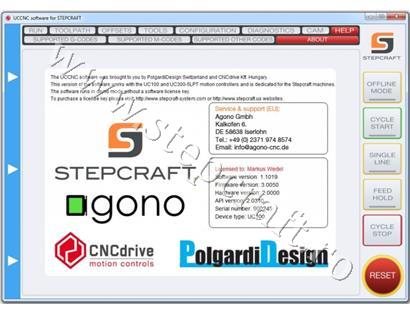

UCCNC control software Stepcraft OEM
Detalii produs Inapoi
UCCNC is a machine control software that has been adjusted and optimized especially for STEPCRAFT systems and tools.
The key features are
RS274- und M codes execution
Up to 100 kHz operation
Exact stop and cont. velocity interpolations with highly configurable advanced preview function
G54 / G 59 tools offset and G52 / G92 temporary Offset
3D toolpath viewer
Unlimited number of user text macros
Parametric programming using internal variables and programming mathematical expressions
User interface customizable with screen set scripting
Fast communication with optimized buffering technique producing low button press to event execution time
Extremely low jitter on the step and direction signals for smooth, high speed and precise motors operation
Interface to computer is USB, interface to machine is parallel
Stepcraft installer
System requirements:
At least 1,6 GHz clock frequency
1 GB RAM
16 GB harddrive space
Windows XP, 7, 8 und 8.1 (both 32 und 64 bit versions)
Delivery content:
1x CD with software, manuals and sample files
1x UC 100 controller
1x UCCNC software license (by email)
1x USB cable
1x STEPCRAFT parallel module
Informatii utile
| Signals and control |
WinPC-NC USB Starter |
WinPC-NC USB Fullversion |
UCCNC |
| Machine control |
USB |
USB |
USB |
| Auxiliary output, e.g. Milling router, cooling, dispensing |
2 |
8 |
8 |
| Indication for spindle control |
PWM |
8 Bit – PWM |
8 Bit – PWM |
| Toggle signal as saftey feature |
yes |
yes |
yes |
| Real-time ability on Windows steadines |
excellent |
excellent |
excellent |
| Concurrent controllable axes |
2 (XY), Z with set infeed |
4 (XYZ TABC) |
4 (XYZ TABC) |
| Operable on following Windows version |
XP to W10 32/64-Bit |
XP to W10 32/64-Bit |
XP to W10 32/64-Bit |
| Minimum requirement for PC clock frequency |
> 2Ghz |
> 2Ghz |
> 2Ghz |
| Axis resolution, speed and ramps individually adjustable |
no / yes / no |
yes / yes / yes |
yes / yes / yes |
| Signal test |
no / no / yes |
yes / yes / yes |
yes / yes / yes |
| Backlash adjustable per axis |
yes |
yes |
yes |
| Date format, import filter |
|
|
|
| HPGL, PLT |
yes |
yes |
no |
| DXF (only 2D) |
yes |
yes |
yes |
| DIN/ISO with subprogram, abs/rel. Vectors (G-Code) |
no |
yes |
yes |
| Program functions |
|
|
|
| CAM functions for 2D data (e.g. Radius correction) |
yes |
yes |
yes |
| Independently configurable GUI |
no |
no |
yes |
| Cutting path simulation |
no |
no |
yes |
| Tool amount |
2 |
10 |
10 |
| Tool length measurement and balancing |
no |
yes |
yes |
| Software and switch und machine area monitoring |
no |
yes |
yes |
